Major Science offers SmartView Simple gel documentation System for your UV or Blue Light Transilluminator. This unit is designed for extremely light in weight and compact in size.
For any lab with limited budget and lab space, the SmartView Simple Imager System is definitely your choice of selection. It is compatible with most of the transilluminators on the market. (for any maximum viewing size less than 260 x 210 mm)
The system cames with two models for your selection.

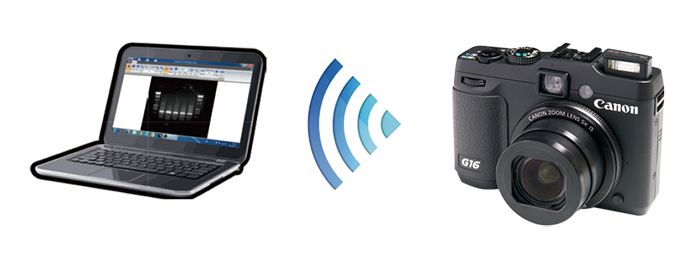

Digial camera model gives your mobility and Scientific camera gives you Image capture and analysis capability right from your computer.
- Extremely light weight and compact in size
- 12.1 megapixel digital camera and 5.0 megapixel scientific grade camera for selection
- PC required for scientific grade camera model (image capture software included)
- Amber filter special designed for blue light viewing (560nm or 580nm)
- Optical filters available upon ordering (for EtBr or SYBR)
- Gel capture/Analysis software included FREE of charge (when purchasing with 320 Imager system)
| Cat. No. | MUV-IMG-CA(SmartView Simple 310) | MUV-IMG-CM(SmartView Simple 320) |
| Camera | 12.1 MP digital camera , Wi-Fi function | 5.0 MP ,10 bit scientific grade camera |
| Special Featrures | Camera with built-in Wi-Fi | Analysis software included |
| Aperture | f/1.8(W) – f/2.8(T) | max. f/1.2 |
| Shutter Speed | 15 – 1/4000 sec. | 30 – 0.01 sec. |
| Storage Media | SD Memory card, Wi-Fi to PC | PC |
| Unit Dimensions | (W x D x H) 9.29″ x 12.48″ x 16.38″ (236 x 317 x 416 mm) | |
| Unit Weight | Approx. 3.1 lbs. ( 1.4 kg) | |
| Max. viewing size | 10.24″ x 8.27″ (260 x 210 mm) | |
| Filter (Camera) | Optical EtBr filter (standard); optional filter available | |
| Software Support | N / A | Windows 8 / 7/(64 & 32 bit)/XP/Vista |
| 1 D Analysis Software | N / A | Cat. No. MEB-IMG-SW included |
